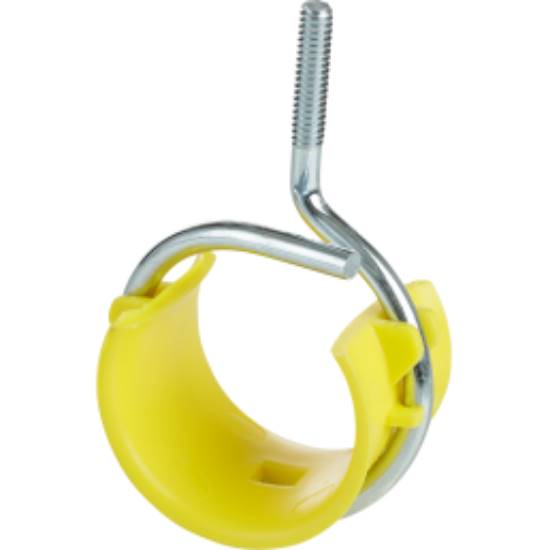

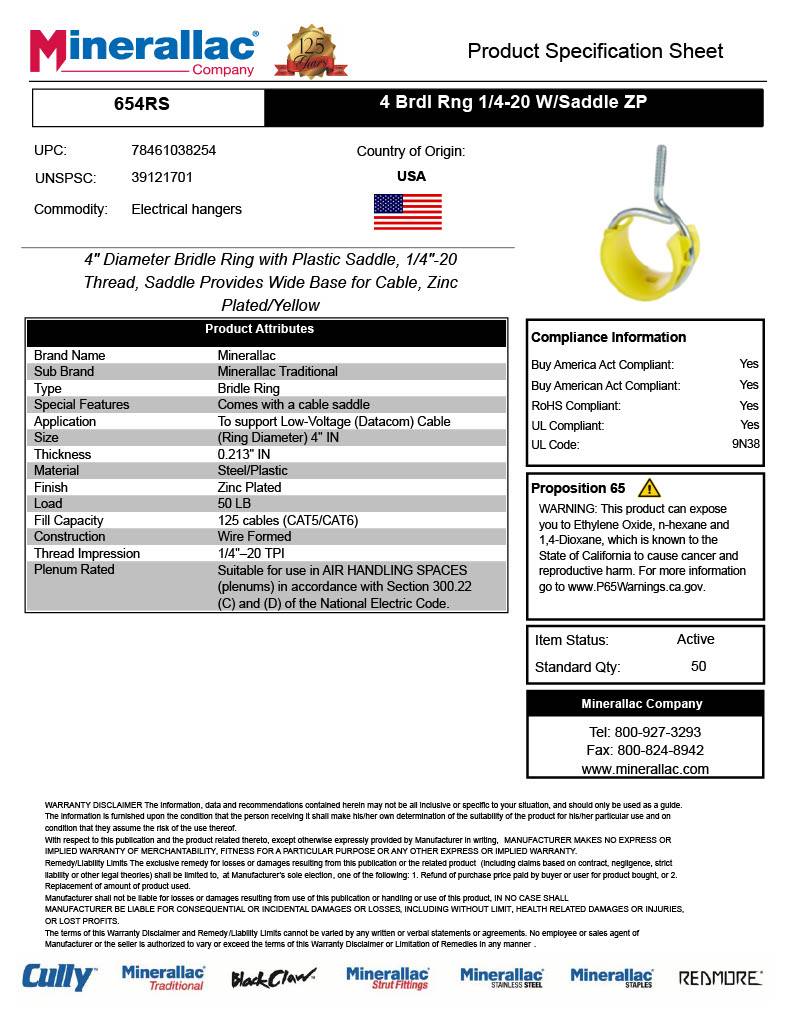

4" Bridle Ring With Saddle Box of 50 This 4" metal bridal ring is great for your main runs and has the same plastic saddle as our 2" ring to create a wider bearing area for today's high performance cable. Ring will handle up to a 4" bundle of cable. The ring has 1/4"-20 threads so it is easy to mount with beam clamps or Sammy Screws. Click here for cut sheet.
About the Minerallac 654RS Bridle Ring
The Minerallac 654RS is a 4” bridle ring designed to support and organize data and low-voltage cabling installations. Unlike a standard bridle ring, the 654RS features an added saddle, which enhances its ability to distribute the load and protect more sensitive cables. This version, the 654RS, is ideal for applications that require a larger ring size, providing greater capacity and support. A 2" version is also available Minerallac part number 648RS. InstallationThe Minerallac 654RS boasts a zinc finish and comes equipped with ¼-20 threads, allowing for easy installation with various mounting options. It can be mounted using a standard beam clamp, hammer-on beam clamp, powder-actuated rod hangers, or concrete anchors, providing flexibility for different installation environments. Additionally, it is compatible with the Sammy Screw line of anchors, ensuring hassle-free installation in wood, concrete, and steel surfaces. The saddle on the 654RS is approved for use in air handling spaces and can be removed if desired. Advantages of the Minerallac 654RS Bridle Ring
Bridle rings, including the Minerallac 654RS, have been a popular choice in the data communications and low-voltage industries for years, thanks to their reliability and ease of installation. The ability to securely lock the ring in place while pulling cable through pathways is a major advantage. The saddle feature on the 654RS is especially beneficial when dealing with more delicate cables, offering additional support and protection during installation. Furthermore, the high-quality finish of the 654RS ensures a professional appearance and long-lasting durability. Capacity of the Ring
The Minerallac 654RS can hold approximately 35 CAT5/CAT6 cables, according to the manufacturer, although the capacity may vary depending on the cable's thickness and the manufacturer. This makes the 654RS an excellent choice for managing large cable bundles in commercial, residential, or industrial installations.
|
|
|
