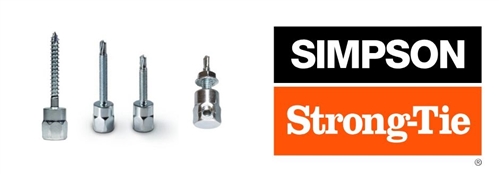

What are Simpson Strong-Tie rod hangers used for?
Simpson Strong-Tie rod hangers are used to suspend threaded rod from overhead structures such as concrete slabs, wood beams, and steel framing. They are commonly used for hanging pipe, conduit, cable trays, and HVAC systems.
What materials can rod hanger screws be installed into?
Rod hanger screws are designed for installation into concrete, wood, and steel. Each type is engineered specifically for its base material to ensure proper holding strength and performance.
What are the advantages of rod hanger screws over drop-in anchors?
Rod hanger screws install faster because they do not require setting tools or hammering. They also require smaller drill holes and can be installed quickly using standard tools, making them ideal for overhead applications.
Do Simpson rod hangers require special tools?
All though the Simpson RND62 is recommended for wood and steel to prevent overdrive, most Simpson Strong-Tie rod hangers install with standard drill bits, sockets, and impact drivers. They are designed for quick installation without specialized equipment.
What sizes of threaded rod are supported?
Common rod sizes include 1/4", 3/8", and 1/2" threaded rod. Selecting the correct size is important to ensure proper load capacity and performance.
Can rod hangers be installed horizontally or vertically?
Yes. Many Simpson Strong-Tie rod hangers are designed for both vertical and horizontal installations, allowing flexibility depending on the application and structure.
Are rod hanger screws suitable for overhead installation?
Yes. These anchors are specifically designed for overhead use and are commonly used in ceilings and structural systems where threaded rod suspension is required.
Do steel rod hanger anchors require a retaining nut?
Some steel rod hanger screw anchors require a retaining nut to achieve full published load ratings. Always review manufacturer specifications before installation.
How do I choose the right Simpson Strong-Tie rod hanger?
Choosing the right rod hanger depends on three main factors: the diameter of the threaded rod, the base material (concrete, wood, or steel), and the load requirements. Always verify technical data and approvals for your application.
What applications are rod hanger screws commonly used for?
Rod hanger screws are commonly used in HVAC installations, electrical conduit support, fire protection systems, cable tray suspension, and general mechanical or construction applications.
